The Best Systems for Precisely Laser Marking Surgical Instruments

Traceability is a practice used across numerous industries to differentiate each unit produced and accurately track each through the entire manufacturing process and their lifecycle. For the medical industry, items like surgical instruments require such markings for a myriad of reasons.

Importance of Surgical Instrument Traceability

In the medical sector, traceability is necessary for ensuring health, safety, and compliance. The FDA requires manufacturers to mark instruments with a unique device identification (UDI). The UDI is a design that stores product information and is uploaded into the federal UDI system. The FDA requires the designs to be clear enough to be read easily by humans and machines. Laser marking surgical instruments ensures compliance with these requirements.

UDIs fall into two categories: device identifiers and production identifiers. Device identifiers signify what type of instrument the product is. Production identifiers store information like serial number, batch number, expiration date, and manufacturing date. Since production identifiers require a lot of information, manufacturers may choose to use a 2D code to concisely store large amounts of data in a very small form factor. The 2D code is read by a machine and produces the information for the UDI System.

If a medical professional notices a defective instrument, the existence of a UDI marking allows them to quickly get to the bottom of exactly where and when that product was produced and find the root cause prior to producing any more defective equipment. Likewise, marks make it easy for other medical professionals to check their instruments for site recall.

Benefits of Laser Marking for Surgical Instruments

Permanent and Precise Marks

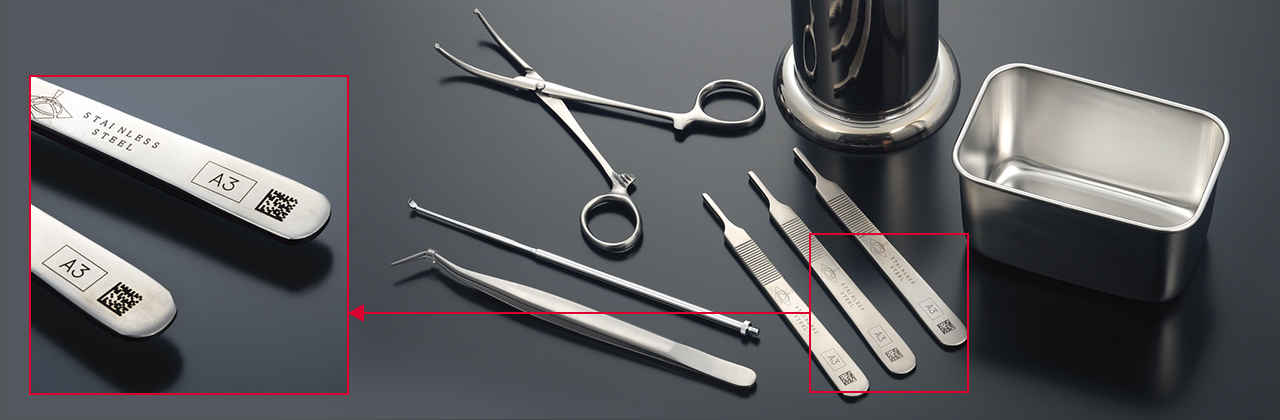

The FDA requires UDI marks to be easily read by both machines and humans. Since surgical instruments are constantly being sanitized and come in contact with bodily fluids, it is essential that the traceability mark can withstand this and stay visible. Laser marking surgical instruments ensure visibility by using focused light to create permanent and precise marks that are fully permanent and will not fade over time, unlike older marking methods like stamping and printing that can wash off and fade away.

Easily Create 2D Codes

A common traceability mark for surgical instruments is a 2D code because of how much information can be stored inside. Laser marking surgical instruments with 2D codes is commonly performed using an "annealed" style mark. This is created by de-focusing the beam to create a high contrast, damage free mark. This is especially important in the medical industry, where products often go through passivation and other harsh testing conditions. These annealed marks can survive the most daunting test cycles without adding any additional complexity or opportunities for failure.

Black Marking Method

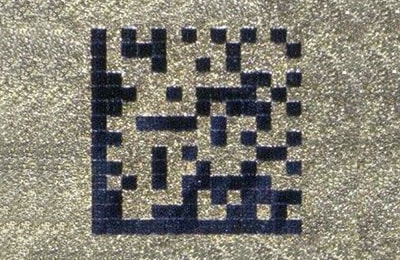

Marks the target surface with a black colour by heating the surface.

Engraved Marking Method

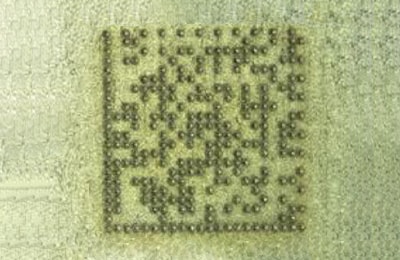

Removes the top surface of the part by etching away material.

Cold Marking Method

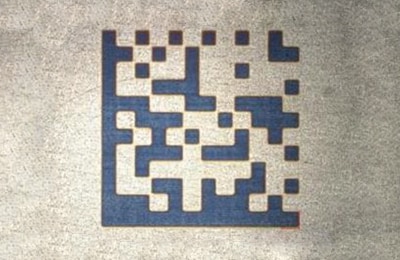

Colours the surface black, while leaving the oxide film intact.

No Contamination

During a surgical procedure, eliminating contamination is essential to the patient’s and medical professional’s health and safety. Since laser marking is a non-contact marking style, the opportunity for contamination or product damage is greatly reduced from that of conventional marking methods.

Factors to Consider When Choosing a Laser Marking System

Material

When choosing a laser marking system, considering what material the surgical instrument is made of will determine the type of laser. Commonly use multiple metals as well as plastics and resins - each of which can be laser marked with a high level of quality.

Metal and resin differ in reflection and heat resistance. When working with metal, using a high-powered laser for laser marking surgical equipment will achieve high contrast. Alternatively, resins tend to react better to a lower power, higher absorption rate laser such as the MD-U.

Material Selection

Material name Hybrid Laser Marker
MD-X Series
Fibre Laser Marker
MD-F Series
CO2 Laser Marker
ML-Z Series
Resin EP (epoxy resin) very good good good
ABS (ABS resin) very good good possible
PBT very good good possible
PA good possible good
PC (polycarbonate) good good good
PP (polypropylene) good possible good
PE (polyethylene) good possible good
PET not possible not possible very good
PPS good possible good
PS (polystyrene) good possible good
PI (polyimide) possible possible possible
PVC (polyvinyl chloride) good good very good
Glass epoxy good good good
Metal SUS (stainless steel) very good very good not possible
Fe (iron) very good very good not possible
Al (aluminium) very good very good not possible
Ni (nickel) good good not possible
Cu (copper) good possible not possible
Au (gold) good possible not possible
Other Ceramic good good good
Si (silicon) good possible possible
Paper good good very good
Rubber very good very good very good
Glass not possible not possible very good
Wood possible possible very good

*The evaluations for the symbols given in the table vary depending on the state and additives of the target as well as on the set conditions. Use this information as typical examples

Top Systems for Laser Marking Surgical Instruments

3-Axis Hybrid Laser Marker MD-X Series

The 3-Axis Hybrid Laser Marker MD-X Series is a top system for marking metal surgical instruments. It combines the high-quality beam of a YVO4 laser and the high output of a fibre laser, greatly reducing the opportunity for any heat damage to the part.

The MD-X moves fast in a production line with a high peak power and short pulse duration. Additionally, the MD-X has a long service life and can account for up to 42 mm in Z-height deviation. Altogether, MD-X’s properties limit thermal damage and mark efficiently, precisely, and permanently.

Comparison of Medical Laser Applications

Laser marking medical equipment doesn’t stop at surgical equipment. Laser markers are also used to mark nonsurgical equipment like medicine bottles, instrument covers, tubes, packages, wires, and masks. Investing in a laser marker for medical equipment can span across all manufacturing needs, not just in the surgical category.
