Laser Etching vs Laser Engraving: Which to Choose?
Laser etching and laser engraving are commonly thought of as interchangeable, but there is a difference between the two when it comes to their processes and results. Laser etching and laser engraving both have benefits and drawbacks depending on the project’s desired outcome.
With that said, it is essential to understand the difference between laser etching vs laser engraving to ensure you choose the best option for your particular needs. In the following, we’ll take a look at each process, along with the top industries that utilise them.
Laser Etching Process
Laser etching creates raised marks on metal material, such as aluminium, stainless steel, or zinc by electrolyte absorption. The laser etching process begins with a laser beam hitting and electrifying a metal, resulting in a current running through it. The metal then partially absorbs the energy and also reflects the energy.
Once the metal absorbs the energy and transforms it into heat, the metal becomes malleable, expands, and changes in color and texture. The ratio of absorption to reflection affects whether the etch will be black, white, or gray. You may choose laser etching vs engraving for the stylistic reason of wanting raised marks instead of deep marks or because the process is generally faster.

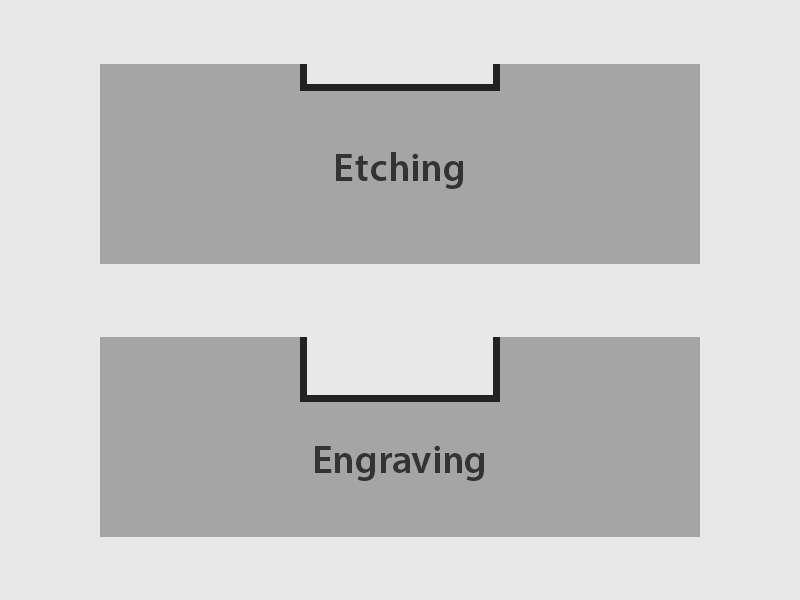

Laser Engraving Process vs the Laser Etching Process
Laser etching and laser engraving are both techniques used to create designs, but they differ in how they interact with materials and the range of materials they can be applied to. Laser engraving involves vaporizing the material, allowing for deep marks on metal, wood, or plastic.
On the other hand, laser etching makes the material malleable and causes expansion upon laser contact. When durability is a priority and the product must withstand environmental conditions, laser engraving is recommended to achieve deep, long-lasting marks. However, if the original material strength and rigidity must be preserved, laser etching becomes the preferred choice.
Why Do We Need Laser Etching and Laser Engraving?
Although there is a difference between laser etching vs engraving, they both are essential for part traceability because of their permanence. Tracing parts, tools, or jigs through a plant or supply chain is necessary for an efficient recall, minimizing damages, extracting and improving management challenges, and ensuring quality management.
There are two types of part traceability—chain traceability and internal traceability. Both of these use etching and engraving for success. Chain traceability traces a part’s progress from raw material to sale, whereas internal traceability tracks parts along the supply chain through a single company or plant.
For traceability, a tool or jig is laser etched or laser engraved with a serial number that correlates with a description of the tool, such as usage, wear limits, plant names, shelf numbers, count, and date or time. Without traceability, a company may struggle with efficiency when attempting to recall or investigate an issue with a product.
Additionally, traceability allows consumers to feel confident in the reliability of their product because they know where their product came from. Although part traceability relates to tools, many industries use this practice for other products.
How Can Laser Markers Be Integrated?
Laser markers can etch or engrave a material without the common issues faced by laser etching and laser engraving. For instance, a common gripe with conventional etching tools is the inefficiency of creating new designs. Since chemical etching tools may use a stencil, creating designs takes time, money, and additional materials. Instead of a physical stencil, laser markers simplify this process by reading and imitating programming based on data loaded from a CAD file.
Chemical etching is generally used for engraving or eliminating resin, but the process can be detrimental to the product because of its harsh nature. Laser markers are a great alternative since the laser radiation does not make direct contact with the product and produces the same result.
Sometimes the deep cut of engraving is desired for a product, but roadblocks like difficulty engraving small characters and rough or curved surfaces can arise from using a conventional engraver. Additionally, conventional engraving machines can add stress to the material and be a tedious process, so using a laser marker rather than a hand-scribe or dot-peen is more efficient and gentle on materials.
Laser markers can also generate characters smaller than 1mm and mark on rough surfaces. Although some laser markers need external equipment to mark curved surfaces, certain Laser markers have this capability built-in. This flexibility is especially beneficial in the automotive industry. As an example, many parts have identification numbers laser marked in them, making part tracing simple and efficient.
What Industries Use Laser Etching and Engraving?
Although these are some of the most common industries, many others are utilizing them and seeing the benefits that they offer. Both can be effectively used by anyone desiring permanently marked designs on a product, regardless of which industry they are in.
Making the Decision
Deciding between laser etching vs engraving may seem challenging at first, but understanding your goals for a product, the material you’re working with, and the future use of a product can point to the best choice. Additionally, you may want to consider investing in a laser marker that can cut down overall cost, time, and the number of people needed for a project.
