EV Laser Marking Applications

Batteries are the backbone of electric and hybrid vehicles. They are the power source instead of a gas engine.

EV batteries gain power through charging stations or vehicle deceleration. The most common type of battery used for EVs is made from lithium-ion due to its high energy capacity, compact size, and lightweight design.

Laser marking parts of lithium-ion batteries is essential for identification, use, assembly, and traceability purposes. Lithium-ion batteries should have 2D codes, serial numbers, and rough surface adhesion to improve bonding strength.

Serial numbers can provide information about the vehicle the battery is used in, the date it was manufactured, and the manufacturer’s identity. All of this information can be useful for recalls or supply chain management. 2D codes are particularly useful as they can be scanned to easily access this information. Additionally, 2D codes are beneficial for assembly purposes. They can signify how to put a battery together by markings or be scanned for assembly instructions. Because of how lightweight lithium-ion batteries are, they are easily damaged if marked too harshly.

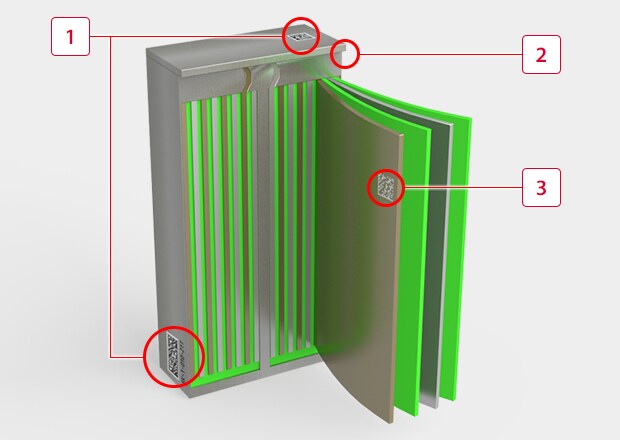

• 1
  2D code and serial number marking on the battery cover : The battery is composed of a case and a cover, which are marked for traceability to be manufactured and assembled more efficiently.
• 2
  Battery cover surface roughening : Laser light is used to roughen the adhesion surface of the battery cover and case to improve the bonding strength.
• 3
  Electrode 2D code marking : 2D code marking is becoming more widespread not only on battery cases but also on the electrodes themselves. Damage-free marking is required on copper materials.

A DC-DC converter is a device made from glass epoxy PCB that converts high-voltage DC from an EV’s battery supply into low-voltage DC electricity. DC-DC converters power EV instruments such as headlights, windshield wipers, and audio systems.

To identify and track DC-DC converters for supply chain management and assembly, serial number marking and 2D codes are necessary. Similar to batteries, the 2D code can give insight into a DC-DC converter's manufacturing history. Additionally, serial numbers created by character marking can also be helpful in aligning a DC-DC with the correct EV.

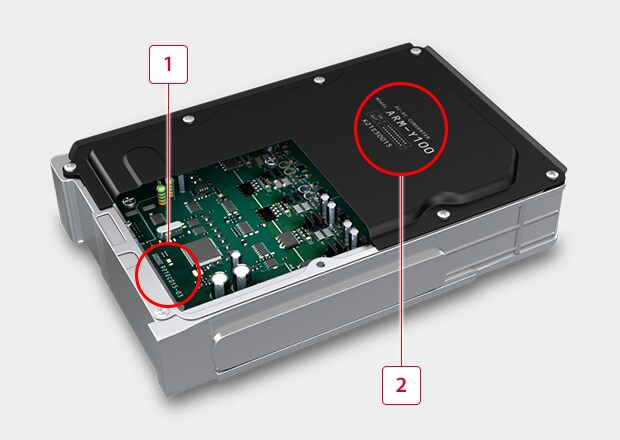

• 1
  PCB 2D code and character marking : Glass epoxy PCB marking. This requires damage-free marking to prevent the production of foreign particles when the resist is removed.
• 2
  Serial number marking on the case cover : In the past, it was common to affix labels to the case, but laser marking is becoming more popular to reduce costs and simplify design changes.

An inverter is a device made of glass epoxy PCB that converts DC electricity stored in a battery into AC electricity. This AC electricity is used to power a synchronous motor, which controls the flow of electricity. The flow of electricity powers the car and allows it to move.

Inverters need 2D code marking on two parts: the aluminium cast and the cooling equipment. Both of these parts need 2D marking for identification purposes because of the variety of specifications. Cooling equipment can vary with the same type of inverter, so 2D marking ensures the correct form. Additionally, an aluminium cast must be identified by millimetres depending on product tolerance.

• 1
  PCB 2D code and character marking : Glass epoxy PCB requires damage-free marking to prevent the production of foreign particles when the coating is removed.
• 2
  2D code marking on cooling equipment : By marking a 2D code on the cooling equipment installed on the inverter, it is possible to ascertain specifications of the equipment.
• 3
  Serial number marking on the case cover : In the past, it was common to affix labels to the case, but laser marking is becoming more popular to reduce costs and simplify design changes.
• 4
  2D code and character marking on aluminium cast parts : The size of cases cast from aluminium can vary by millimetres depending on product tolerance. Many types of cases must be able to be read by a handheld reader, which requires laser marking without defects as a result of being out of focus.

As EVs evolve, it is likely that ECU capabilities will also evolve and grow.

ECUs need to be marked with both a serial number on the case cover and a 2D code for connector identification and traceability purposes. ECU connectors are often made from cream-coloured and grey resin. Because the resin is heat-sensitive and fragile, damage free marking is essential.

ECU connectors control many aspects of an EV, such as:

• Engines
• Airbags
• Power steering
• Transmission
• Stop/Start
• Charging

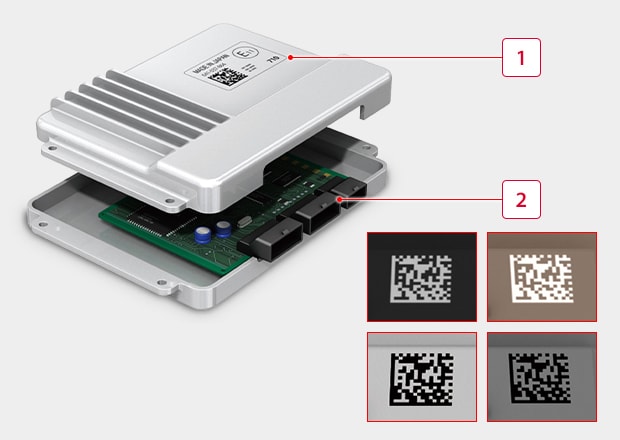

• 1
  Serial number marking on the case cover : In the past, it was common to affix labels to the case, but laser marking is becoming more popular to reduce costs and simplify design changes.
• 2
  2D code marking for connector identification : ECU connectors often use cream-coloured and grey resin, which are difficult to mark with IR laser markers, so a UV laser with high contrast marking is effective.
