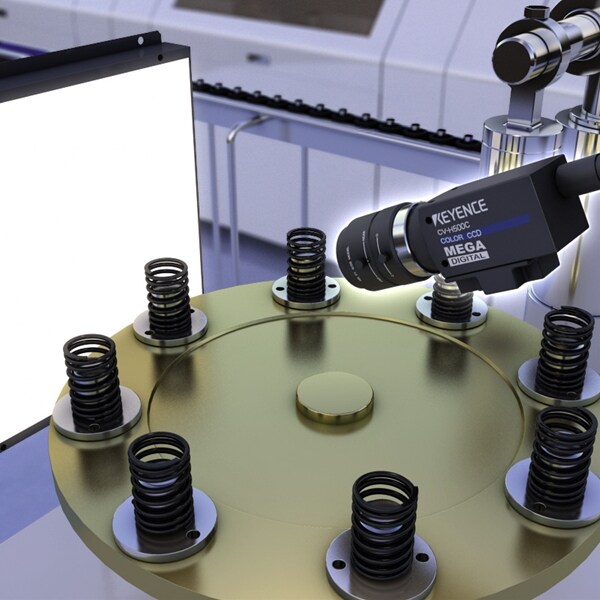

The vision system detects deformed springs.

The XG Series Trend Edge Stain tool applies a reference model to almost any shape part and compares the detected edges of the captured image to the original points of reference. No further calculations are needed to account for variations or angles.

Benefit

Using conventional Edge Tools to detect deformed springs was unstable when the angle of the spring changed. The XG Series makes it possible to stably detect even minute deformations on the outer edge of free-formed curves with the Trend Edge Stain tool.
