Measuring Machines

Roundness Measuring Instrument

Roundness Measuring Instrument

This measuring instrument can measure straightness, roundness, cylindricity, parallelism, perpendicularity, coaxiality, circular runout, and total runout. Generally, roundness measuring instruments are equipped with a rotary table and use a stylus that touches targets to measure various geometrical characteristics.

Coordinate Measuring Machine (CMM)

Coordinate Measuring Machines (CMMs) can measure different geometrical characteristics for form tolerance, orientation tolerance, and location tolerance.

Coordinate Measuring Machine
Moving bridge
Trigger probe

A contact-type coordinate measuring machine detects three-dimensional (X-Y-Z) coordinates when the operator specifies the target’s measurement point or line with the spherical stylus, which is at the tip of the probe. Because the elements (straight lines, planes, circles, spheres, etc.) are calculated from a set of detected coordinates, a coordinate measuring machine can precisely measure angles, positional relationships between elements, profile, and geometrical deviations, in addition to lengths of complex stereoscopic objects.

Least-squares method

Even when the points necessary for measurement are specified using the stylus of a coordinate measuring machine, the shape that passes all of such points may still deviate from the true form. In such a case, the least squares fitting method is used after measurement.

Taking a circle, for example: a circle is formed by calculating the average that minimises the sum of squares of deviation in the radial direction of each measurement point.

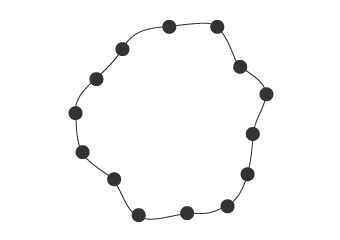

Measurement points
Measurement points

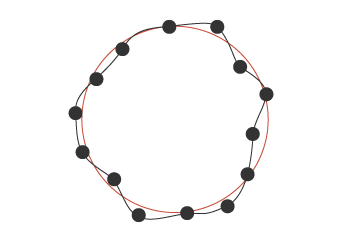

Form generated by least squares fitting (red line)
Form generated by least squares fitting
(red line)
