Part Mounting Check
Industry
Electrical and electronic parts industry
Advantages
Pokayoke (prevention of mistakes)
Detection details

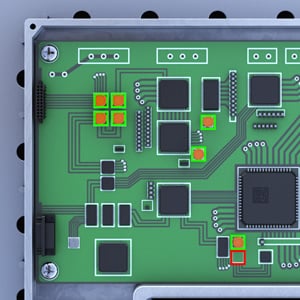

Sensors are used to detect eight parts mounted on the PCB, helping to eliminate mistakes.

Judgement details

  • OK
    OK
  • NG
    NG

Key installation points

With the IV2 Series, detections can be performed with up to 16 tools placed within the field of view. All the equipped detection tools can be placed.
Furthermore, applying position adjustment causes all the tools to shift in relation to the reference. This enables stable multi-point detections even if the PCB position is misaligned.
