Measurement 5Reflective 2D Laser Displacement Sensor

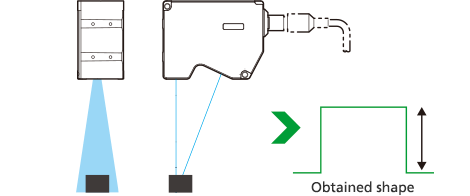

Thickness is found by simultaneously measuring the base surface and target using a 2D laser displacement sensor and measuring step from the obtained profile.
KEY POINTS
Errors occur when there is a gap between the target and the reference surface.
- 1. Use a base surface with high precision, such as a surface plate.
- 2. Use vacuum contact or magnetic contact.
Improving mounting using the above steps will significantly improve measurement accuracy.
LJ-X Series
- 2D Triangulation Method.
- In-line Multi-point measurement.
- World's Fastest sampling rate at 16,000 images/sec.
