Measurement 2Reflective 2D Laser Displacement Sensor

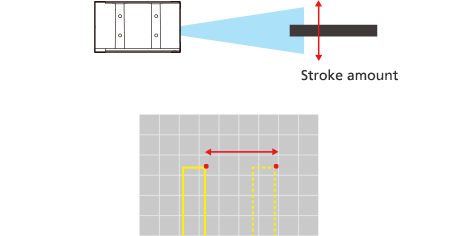

The stroke amount is measured by reflecting the laser line off of the side of the target side and measuring the position of the target end face.

KEY POINTS

  • Stroke can be measured even if the target surface is not flat.
  • Displacement at multiple positions on the target can be measured simultaneously.
LJ-V Series
  • 2D Triangulation Method.
  • In-line Multi-point measurement.
  • World's Fastest sampling rate at 64,000 images/sec.
DOWNLOAD CATALOGUE
LJ-V Series

Click here for a printable PDF version Download these simple guide books and start learning the different measurement practices for different applications
