Measurement 22D Laser Displacement Sensor

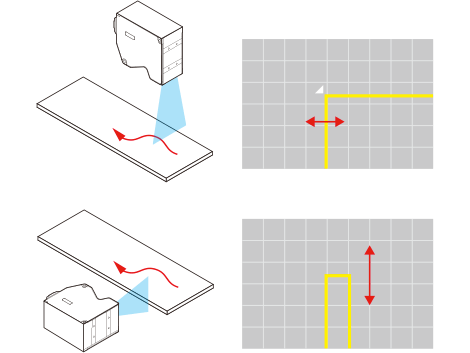

The laser line reflects off the target creating a profile from which to monitor edge position fluctuations. This measurement can be taken from above or the side of the target.


  • Edge position variation and height fluctuations can be measured simultaneously.
  • Edge meandering can be monitored from a distance
LJ-X Series
  • 2D Triangulation Method.
  • In-line Multi-point measurement.
  • World's Fastest sampling rate at 16,000 images/sec.
LJ-X Series
