Measurement 3Laser Displacement Sensor

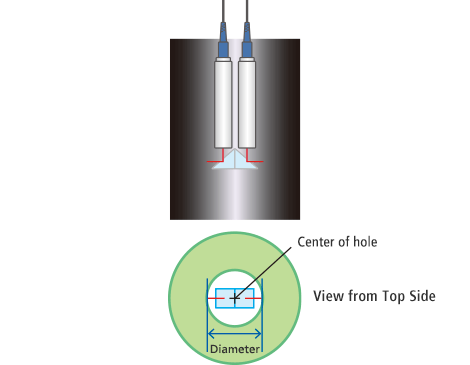

Hole diameters are measured by bending the optical axes of two sensor heads 90° using a prism.
KEY POINTS
The laser beams travel parallel through the centre of the hole and strike prisms to reflect on to opposite inner walls. The workpiece can be rotated to measure roundness and eccentricity.
LK-G Series
- Triangulation Method.
- World's fastest sampling rate 392 kHz.
- 12 sensor heads can be connected.
