Measurement 2Thrubeam Optical Micrometer

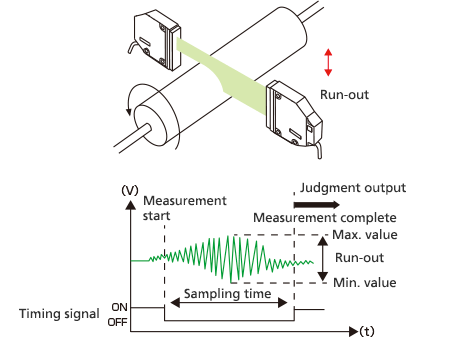

Fluctuations in the edge positions of the roll are captured through high-speed sampling.
KEY POINTS
- The peak-to-peak value of the run-out is found using peak-to-peak hold or a similar function.
- Measurement must be performed at a sampling rate of at least ten times the rotation speed.
LS Series
- 1D Telecentric optical method.
- Long service life design that is free of moving parts.
- Fastest sampling rate in its class at 16 kHz.
- World's fastest sampling rate, 392 Khz.
- 12 Sensor heads can be connected.
