Measurement 22D Triangulation Laser Displacement Sensor

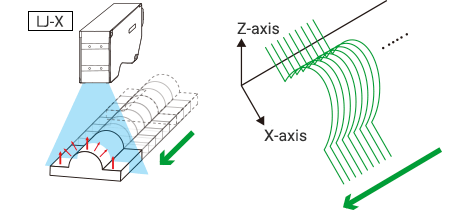

The cross-sectional shape of locations where the laser hits can be obtained. High-speed sampling makes it possible to achieve stable detection even if the workpiece moves.


  • Shapes can be measured without moving the sensor head and target.
  • The shape of large targets can be measured by installing multiple sensor heads.
LJ-X Series
  • 2D Triangulation method.
  • e connected.
  • In-line Multi-point measurement.
  • World's Fastest sampling rate at 16,000 images/sec.
LJ-X Series

Click here for a printable PDF version Download these simple guide books and start learning the different measurement practices for different applications
