Data Centre Battery Types, Performance, and Selection Guide
-
Tags:
- Semiconductor , Laser Marking , Laser Ablation
Key Takeaways
- Choose UPS for short bridging (5–30 min) and BESS for hours-long backup, grid services, and energy arbitrage.
- VRLA suits low‑budget, small edge sites but ages faster in heat; lithium‑ion offers higher energy density and longer life.
- Size batteries by required runtime (commonly 10–15 min), footprint, structural load, and real ambient temperature.
- Factor full TCO: acquisition, installation, maintenance, replacement, cooling, disposal, monitoring, and fire suppression.
- Implement module serialisation and permanent laser marking for battery traceability to avoid incompatible mix‑ins.
Data centres suffer greatly from power outages. Applications can fail, databases can become corrupted, and millions of dollars in lost income can result from a single outage. Battery systems protect your infrastructure from catastrophe, but selecting the incorrect data centre battery types leads to additional issues.
Where Batteries Fit: UPS vs BESS

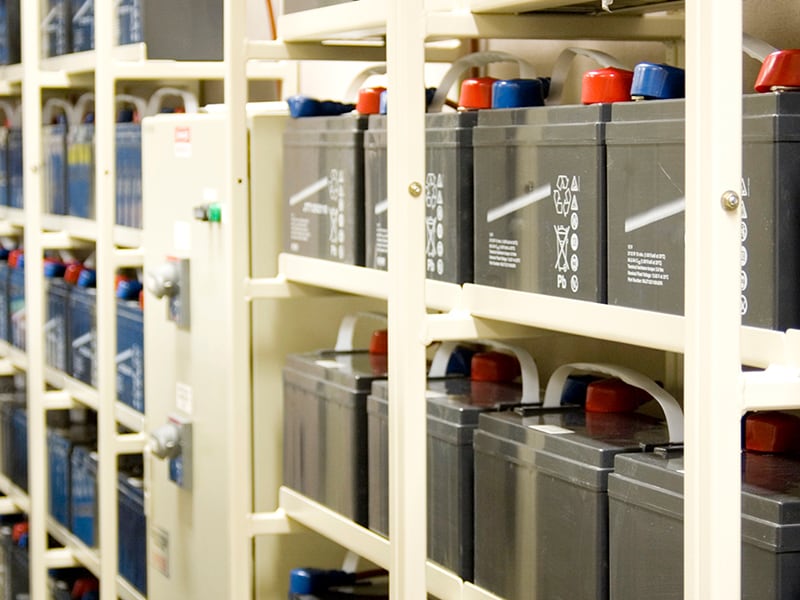

In the event that utility power fails, uninterruptible power supply systems offer quick backup. Data centre UPS batteries, which normally provide 5 to 30 minutes of operation, fill the gap between power outages and generator starts. Before taking on the entire load, this window allows generators to come online and stabilise. Additionally, UPS systems regulate incoming power by removing voltage surges and sags that can harm delicate equipment.
Installations of battery energy storage systems (BESS) have several uses. Demand response programmes, grid stabilisation, and longer runtime scenarios where generator fuel supplies may run out are all supported by these larger deployments. A BESS is useful for places with erratic utility supply or those taking part in energy arbitrage programmes because it can power a complete facility for hours.
When determining the size of your investment, the distinction is important. Short power outages and immediate power quality issues are handled by a UPS. A BESS turns into an energy management instrument that offers backup capacity and can save electricity expenditures during times of high demand. These days, a lot of hyperscale facilities use both, employing BESS for continuous operations during prolonged grid events and UPS for immediate protection.
The Main Data Centre Battery Types
The market is dominated by four technologies, each of which has a unique niche according to operational needs and performance attributes. These include VRLA (Valve-Regulated Lead-Acid), lithium-ion, nickel-zinc, and nickel-cadmium.
Overall, VRLA and lithium-ion are the most common, but each has its own use cases.
VRLA (lead-acid): strengths, limits, and best-use scenarios
VRLA has the longest history and is the most affordable choice upfront, which works well for projects with tight budgets. These systems are easier to handle than flooded lead-acid batteries because they do not need watering. You basically just have to perform routine testing.
The downside is that VRLA batteries do not handle heat well. If the room gets too warm, a five-year battery might only last three years. This leads to more frequent replacements and higher labour costs over time. They are also quite bulky and heavy, which can be a problem in city data centres where floor space is expensive.
Despite these problems, VRLA is still a wonderful option for small edge locations because it makes things easy for teams that wish to keep their inventory of replacement parts and training to a minimum.
Lithium-ion: Lifecycle, Footprint, and Operational Tradeoffs
In the same footprint, lithium-ion provides three to four times the energy density of VRLA. Facility layouts are altered by this space efficiency, which turns floor space from backup power infrastructure to IT equipment that generates income. Multiple VRLA strings are replaced by a single lithium-ion cabinet, which simplifies electrical distribution and minimises installation work.
VRLA vs lithium-ion UPS batteries have different lifetimes. VRLA units typically last three to five years, whereas lithium-ion units typically last ten to fifteen years. The longer service life reduces operational annoyance and disposal costs because fewer replacement cycles are needed. Furthermore, fewer replacements lessen the chance of installation errors that could compromise system reliability.
Lithium-ion technology has a higher charging efficiency. These batteries take charge more quickly and transform more incoming energy into stored capacity as opposed to heat. Cooling system demands are lessened by the decreased thermal load, which lowers recurring utility expenditures. After converting from VRLA, some facilities estimate cooling energy savings of 20 to 30 percent.
Taking safety into account is non-negotiable when it comes to lithium-ion deployments. Although they are uncommon, thermal runaway incidents create fire hazards that VRLA does not. Investments in temperature monitoring, gas detection, and fire suppression equipment are motivated by this risk.
Hyperscale operators and high-density colocation facilities typically prefer lithium-ion. When cooling costs, space efficiency, and replacement frequency are taken into account, the data centre battery TCO calculation progressively favours lithium-ion for hyperscale operators and high-density colocation facilities.
Selection Checklist: Runtime, Footprint, Temperature, Maintenance, Total Cost of Ownership
Regardless of the data centre battery types, capacity sizing is dictated by runtime requirements. After determining your actual bridging time between power outages and generator takeover, add a safety buffer for generator startup delays. Most facilities strive for a full-load runtime of 10 to 15 minutes, while some go up to 30 minutes or more for added protection.
Before choosing a battery chemistry, measure the dimensions of the existing compartment and confirm the structural load capacity. The density advantage of lithium-ion is particularly useful for retrofitting older facilities with constrained battery space. This is crucial because battery options in areas with limited space are limited by your footprint.
Temperature ranges are more significant than the specifications suggest. Examine your facility's actual operating conditions rather than creating temperatures that might not correctly reflect reality during heat waves or cooling system maintenance. If ambient temperatures regularly reach beyond 25°C, take increased ageing into consideration for temperature-sensitive chemistry.
Long-term success is also influenced by your organisation's maintenance capabilities. Questions to consider:
- Do your employees have the necessary training to conduct routine testing and monitoring?
- Is it possible to carry out replacements without hiring outside contractors?
While lithium-ion systems require intricate monitoring and safety precautions, VRLA batteries require regular maintenance.
Acquisition costs, installation costs, maintenance needs, replacement schedules, disposal fees, cooling loads, monitoring equipment, and fire suppression should all be taken into account in a thorough lifetime cost assessment. Rarely does the lowest initial price prove to be the most economical over a ten to fifteen-year period.
Finance teams prefer clear comparisons that weigh different priorities in terms of data centre battery types. Build a cost analysis that matches each battery type to your facility's power needs, space availability, and operating conditions.
Battery Asset Traceability: Labeling, Serialisation, and Replacement Control
During maintenance and replacement cycles, harmful mix-ups are avoided by keeping track of individual battery modules. Data centre UPS batteries from different manufacturing dates or charge cycles should never be combined in the same string. By doing this, voltage imbalances are produced, which hasten failure and lower system capacity.
Permanent Identification with Laser Marking
By immediately imprinting the manufacturing date, installation date, string assignment, and unique serial numbers on every module, permanent laser marking solutions prevent confusion. Laser-marked identification is readable for the duration of the unit's service life, in contrast to adhesive labels that peel away in hot battery rooms.
Enhancing Maintenance and Reliability
Precise tracking of warranty status, maintenance history, and performance trends is made possible via serialisation. Maintenance teams can retrieve the whole service record of a particular module when it exhibits a capacity decline in order to spot trends. Battery traceability systems prevent errors before they jeopardise dependability by flagging attempts to install incompatible modules. The same tracking is used for anode marking during manufacturing to establish a continuous chain from component production to final installation.
Advanced Marking Capabilities
Advanced marking systems handle the varied substrates found in battery construction. Steel casings, aluminium terminals, and plastic housings all require different marking parameters for optimal contrast and permanence. The same equipment that marks and labels batteries can also mark other critical infrastructure throughout your facility.
Contact KEYENCE about battery traceability marking solutions that prevent costly mistakes and improve asset management, regardless of your data centre battery types.
