• Next Generation Shadowgraph

    • Measure up to 99 dimensions in seconds
    • One button, 'Just Place & Press' operation
    • Intuitive point-and-click programming
    • Automatic storage of measurement results
    • Single-click generation of customisable inspection reports

  • What is the IM Series?

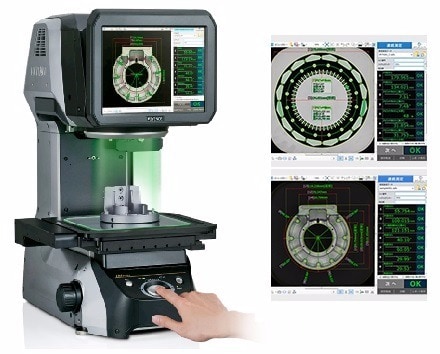

    The KEYENCE IM Series Image Dimension Measurement Device is designed to help drastically reduce inspection times compared to conventional shadowgraphs. Up to 100 simultaneous measurements can be performed in seconds on a wide range of precision parts to a repeatability of +/-0.1 microns.

  • Why Upgrade your Shadowgraph?

    Besides sub-5-second measurement times, the IM Series offers simple, one-button operation, helping to eliminate user error. Unlike conventional shadowgraphs and similar devices, the IM Series delivers uniform accurate measurement results regardless of operator skill level or experience.

  • Taking Measurements

    Simply place up to 99 parts on the stage and press the button to instantly measure all visible programmed dimensions.

    Due to it's ease of use, there's no special training or experience required to use the IM Series. Any operator can place their part, press the button and generate the exact same measurement.

  • Programming and Reporting

    Programs are easy to setup. Simply measure a part, select the dimensions you need, set the tolerance range and save.

    Built-in data management and programming interfaces, enable the creation of custom inspection reports and measurement data with just a few clicks.

  • Precision Pressed Parts

  • Precision Moulded Parts

  • Springs & Turned Parts

  • Mounted Parts
