Optical Measurement System

Optical Measurement System
The NEW IM-7000 Series
- 99 dimensions on up to 100 parts in seconds
- No operator subjectivity
- Place and press inspection
- Automatically record data and generate inspection reports
- Download Brochure

What is the KEYENCE IM Series?

The IM Series Instant Measurement System is a visual inspection system that performs measurements in place of optical comparators, calipers/micrometers, measuring microscopes, and optical CMMs.

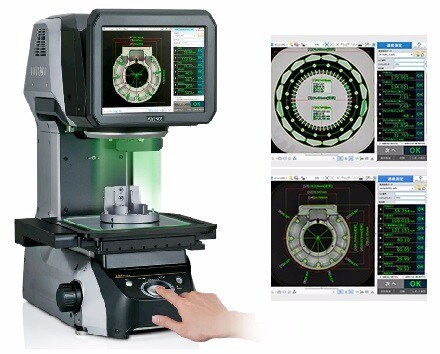

Place and Press Inspection

After placing the part on the stage, just press the button and in just 3 seconds you will receive up to 99 measurements on up to 100 parts with an OK/NG judgment, significantly reducing quality inspection time.

Eliminate Operator Error

Utilizing the IM Series' advanced optics and high-speed image processing technology, measurements are now consistent regardless of who's operating the system.
Automatic Data Recording and Inspection Reports

Complete inspection and analysis reports can be automatically saved on the system without having to manually record the data by hand.

Spring
Lathe Processing
Threads
Plastic with Toplight

For more information please download the brochure.
