• Next Generation
    Optical Comparator

    • FAST - Measure up to 99 dimensions in seconds
    • EASY - One button, 'Just Place & Press' operation
    • CONSISTENT - No operator variability

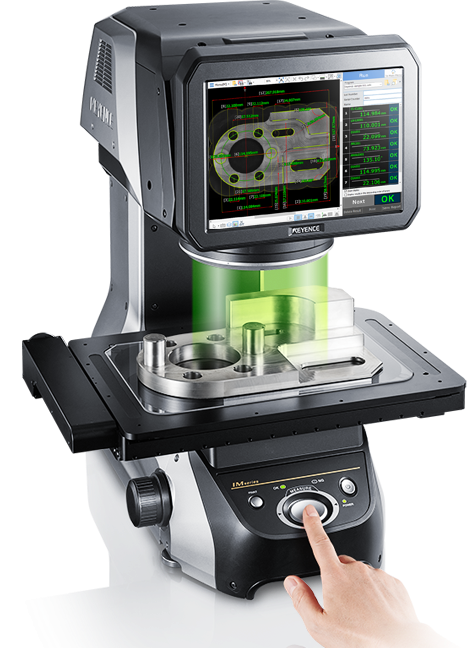

  • What is the IM Series?

    KEYENCE Image Dimension Measurement Device, the IM Series, is designed to help drastically reduce inspection times compared to conventional measurement devices. Up to 100 simultaneous measurements can be performed in seconds on a wide range of precision parts to a repeatability of +/-0.1 microns.

  • Why Upgrade your Optical Comparator?

    Besides sub-5-second measurement times, the IM Series offers simple, one-button operation, helping to eliminate user error & operator variance. Unlike conventional optical comparators and similar devices, the IM Series delivers uniform accurate measurement results regardless of operator skill or experience.

  • Taking Measurements

    Simply place up to 99 parts on the stage and press the button to instantly measure all visible programmed dimensions.

    Due to it's ease of use, there's no special training or experience required to use the IM Series. Any operator can place their part, press the button and generate the exact same measurement.

  • Programming and Reporting

    Programs are easy to setup. Import CAD file or simply measure a part, select the dimensions, set the tolerance range and save.

    Built-in data management and programming interfaces, enable to create custom inspection reports and measurement data with just a few clicks.

  • Precision Pressed Parts

  • Precision Moulded Parts

  • Springs & Turned Parts

  • Mounted Parts
