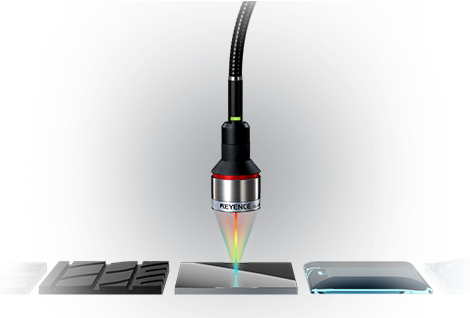

• Confocal Displacement Sensor

    • High-precision measurement on any material or surface
    • Ultra-compact and lightweight
    • Effective on rough and curved surfaces
    • High precision multi-colour confocal method

      Larger measurement ranges and higher accuracy across the entire measurement range.

    • Ultra-compact and lightweight

      Not only can the sensor head be installed in small and constrained spaces, it can be easily mounted on robots as well.

    • Resistant against multiple reflections

      Quad processing is not impacted by irregular or multi-reflection light.

      This makes it possible for the CL series to stably measure on reflective or angled surfaces, such as IC Connector Pins or Glass.

    • Stable, high-accuracy measurement

      The Quad Spot system directs light onto four points on the target enabling accurate measurement even on rough or difficult surfaces. The light from each of these four points is received onto four separate CMOSs and measurements are determined for each point.

      The signal strength and reliability of each point is evaluated and the unique processing system determines the true measurement by removing the influence from irregular reflections.

    • Glass

    • PCB

    • Sealant or adhesive

    • Machined parts


      KEYENCE has been an industry leader in sensing technology since 1974. KEYENCE's direct sales team visits customers with live demo equipment to find the best possible solution for all applications.

    Learn more about the CL-3000 Series!
