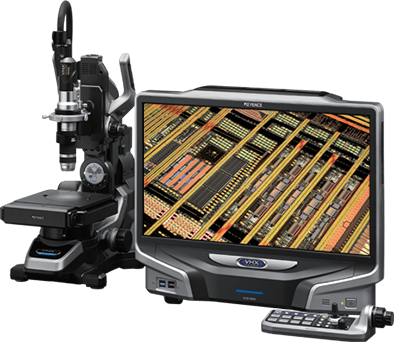

  • 3D Inspection Microscope

    • High-resolution 3D images
    • Capture areas completely in focus
    • Ability to inspect from any angle
    • Advanced 3D measurement capabilities

  • High-Resolution 3D Images

    The VHX 3D display function allows users to generate fully-focused 3D images of a target even at high magnifications. By combining glare removal functions and 3D compilation technologies, it is possible to construct a 3D profile even on targets with extremely reflective surfaces.

  • Capture Areas Completely in Focus

    The depth from defocus method allows users to always have fully-focused images. By calculating the height position of the lens when each point in the image comes into focus, a 3D image can be created with height data and detailed texture information.

  • 3D Measurement

    The 3D image contains data in the XY and Z axes, providing measurements such as volume, distance, plane angle, and profile. These are typically impossible with conventional optical microscopes.

  • Inspect from Any Angle

    Compared to conventional microscopes, the VHX is extremely flexible. With the ability to inspect targets from any angle, users are able to view parts of a target that are normally impossible to see.
