Measurement 1Laser Displacement Sensor

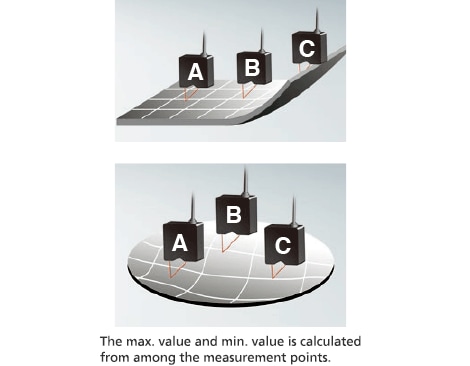

Warpage and Flatness are measured by calculating the height difference obtained by multiple sensor heads at different locations on the part.
KEY POINTS
- Measurement errors caused by chattering when the sensor heads move does not occur.
- Because the sensor heads are not moved, inspection cycle times are fast.
- No mechanism for moving the sensor head is required.
LK-G Series
- Triangulation Method.
- World's fastest sampling rate 392 kHz.
- 12 sensor heads can be connected.
